How Do I Run a Diagnostic on My Kitchenaid Dishwasher

Running a diagnostic on your KitchenAid dishwasher is a simple yet powerful way to identify error codes and pinpoint issues without immediately calling a technician. By accessing the built-in service mode using specific button sequences, you can make your dishwasher display fault codes that indicate problems with components like the drain pump, heating element, or turbidity sensor. This guide provides clear, model-specific instructions for initiating diagnostics, interpreting common error codes, and performing basic resets, empowering you to diagnose problems efficiently and decide if a repair is within your skill set or requires professional help.

Has your KitchenAid dishwasher suddenly stopped draining, left your dishes spotty, or started beeping mysteriously? Before you panic and call for an expensive service call, there’s a powerful tool built right into your appliance you can use: the diagnostic mode. Think of it as your dishwasher’s way of whispering its secrets to you. Running a diagnostic doesn’t require any special tools or technical expertise—just a careful hand and the right button sequence. This comprehensive guide will walk you through everything you need to know, from finding your model number to deciphering the cryptic error codes, so you can approach any dishwasher dilemma with confidence.

Key Takeaways

• Safety First: Always ensure the dishwasher is powered on but not mid-cycle, and exercise caution. For deep diagnostics, consider turning off the circuit breaker.
• Model Matters: The exact button sequence to enter diagnostic mode varies significantly between KitchenAid series (e.g., KUDI, KUDE, KUDS). Identifying your specific model number is the critical first step.
• Error Codes are Your Clue: The diagnostic mode will cause the display to show a fault code (like F1, F2, or a blinking light pattern). This code directly corresponds to a specific component failure.
• Diagnostics Identify, Don’t Fix: Running a diagnostic tells you *what* is wrong (e.g., “drain error”), not necessarily *how* to fix it. It guides troubleshooting but repairs may require technical skill.
• Consult the Manual: Your user manual’s technical sheet is the ultimate authority for your model’s diagnostic codes and procedures. If you don’t have it, finding it online is highly recommended.
• Simple Resets Can Help: Often, a simple reset (power interruption) can clear a temporary glitch. Diagnostics help determine if the problem is persistent or a one-time fault.
• Know When to Call a Pro: Diagnostics revealing issues with the main control board, motor, or internal wiring are typically best left to a qualified appliance repair technician.

Why Run a Diagnostic? Understanding the “Why” Behind the Beep

Modern dishwashers like KitchenAid are sophisticated machines with multiple sensors and electronic control systems. When something goes wrong, it doesn’t just fail silently. The control board logs a fault and often signals it with lights, beeps, or a display code. The problem is, these signals (like a single blinking light or a series of beeps) are often vague. Running the formal diagnostic mode forces the dishwasher to communicate in a standardized, precise language: the error code.

The Benefits of DIY Diagnostics

Taking a few minutes to run a diagnostic can save you significant time and money. Here’s how:

• Precision Diagnosis: Instead of guessing whether the issue is a clogged filter, a broken pump, or a faulty sensor, the error code points you directly to the failed component or system.
• Informed Decisions: Knowing the specific fault allows you to search for solutions online accurately, order the correct replacement part if needed, or have an informed conversation with a repair technician.
• Potential Quick Fixes: Some faults, like a “float switch” error, might simply mean a stuck sensor or a bit of debris—something you can often fix in minutes.
• Preventive Insight: You can run diagnostics periodically as a check-up, catching minor issues before they become major, costly failures.

Ultimately, it transforms you from a frustrated user into an informed troubleshooter. You move from “My dishwasher is broken” to “My dishwasher has a F2 error, which indicates a drain problem, so I should check the drain hose and pump first.”

Step 1: Preparation and Identifying Your Model

Before you start mashing buttons, a little prep work is essential. The most critical piece of information is your dishwasher’s exact model number. This is not optional; it’s the key that unlocks the correct procedure.

Finding Your KitchenAid Dishwasher Model Number

The model number is typically located on a sticker or plate in one of these spots:

• On the side of the door: Open the door and look along the top or side edge of the interior. The label is often visible when the door is open.
• On the tub rim: Check the edge where the door meets the dishwasher tub.
• Behind the lower rack: Sometimes it’s on the side wall behind where the rack slides.
• On the back of the unit: If you pull the dishwasher out slightly (ensure it’s unplugged or breaker is off!), you might see it on the back panel.

The model number will start with a letter, usually “K” for KitchenAid, followed by a series of letters and numbers (e.g., KUDE20SS, KUDI01FRSS, KUDS30FVSS). Write this down. You will use it to find your specific service manual or to confirm the correct diagnostic sequence online.

General Safety and Setup

You are about to interact with live electronic controls. A few safety notes:

• Power On: The dishwasher must be plugged in and have power. The breaker should be ON.
• No Active Cycle: Ensure the dishwasher is not currently running a wash cycle. It should be in a “ready” state, with the display showing the time or cycle status, or it may be completely dark if the door is closed.
• Door Open/Closed: Some sequences require the door to be open, others closed. We’ll specify for each common series.
• No Water: Do not attempt to run diagnostics while the dishwasher is full of water or mid-drain.
• For Deep Diagnostics: If you need to access internal components later, turn off the dishwasher circuit breaker at your home’s electrical panel.

Step 2: The Diagnostic Entry Sequences (By Common Series)

This is the core of the process. KitchenAid has used several different control panel designs over the years. The sequence to enter service mode depends heavily on your model’s button layout. Below are the most common sequences for major KitchenAid series. If your model isn’t listed, use your model number to search for “[Your Model Number] diagnostic mode” online—this will almost always yield the exact sequence from a service manual or forum post.

For Models with a “Heavy,” “Normal,” and “Light” Wash Buttons (Very Common)

This is one of the most prevalent designs, found on many KUDI and KUDE series models.

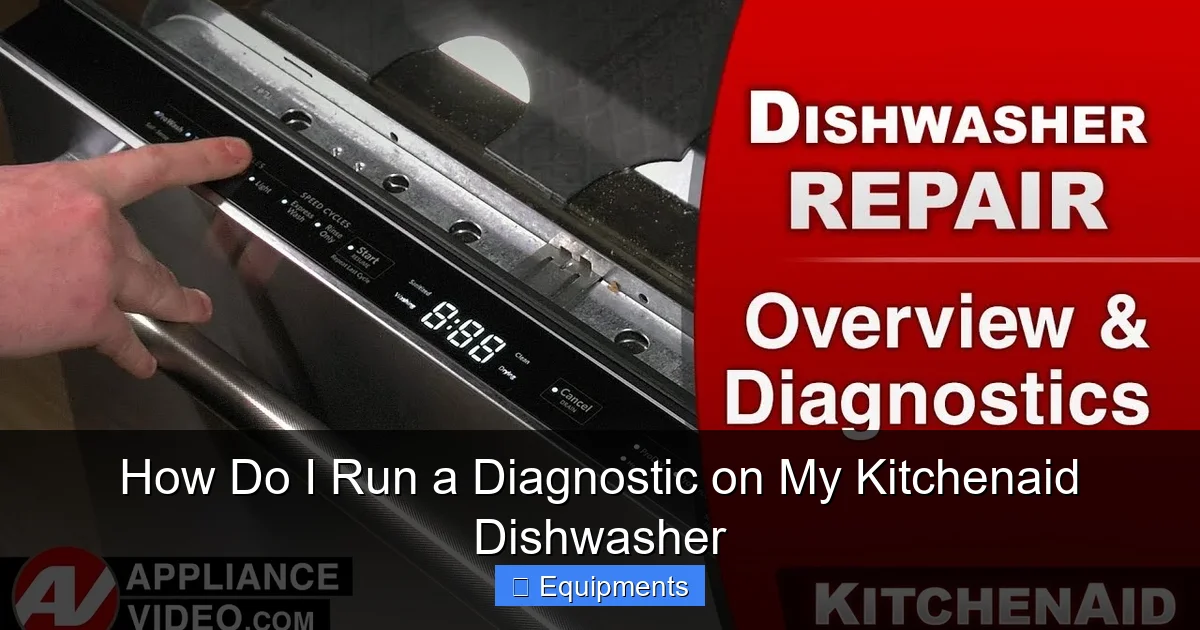

1. Ensure the dishwasher is powered on but no cycle is running. The control panel may be lit or dark.
2. Press the following buttons in rapid succession: HEAVY WASH -> NORMAL WASH -> LIGHT WASH -> HEAVY WASH -> NORMAL WASH -> LIGHT WASH. You must press them in that exact order, one after the other, quickly.
3. After the last press (LIGHT WASH), all the display lights should illuminate or you should see a specific code (like “88” or “00”) appear. The dishwasher is now in diagnostic mode.
4. To exit: Press the CANCEL/DRAIN button or simply close the door for a few seconds and reopen it.

For Models with a “3-Second Hold” Method (e.g., Many KUDE, KUDS Series)

Another very common method involves holding a combination of buttons.

1. With the door closed and the unit powered on, press and hold the HEAVY WASH and NORMAL WASH buttons simultaneously.
2. Continue holding them for 3 seconds until you see the display light up or change. You may hear a beep.
3. The dishwasher is now in diagnostic mode. The display will show a fault code if one is stored, or it may start cycling through tests.
4. To exit: Press CANCEL/DRAIN or let it time out.

For Models with a “Rinse Hold” or “Delay Start” Button Sequence

Some older or different series use a sequence involving the Rinse Hold or Delay Start button.

1. Press the following sequence: RINSE HOLD -> HEAVY WASH -> NORMAL WASH -> LIGHT WASH.
2. All lights should illuminate, or a code will appear.
3. To exit: Press START/RESUME or CANCEL/DRAIN.

For Touchpad or “Pro” Models (Digital Displays)

Models with all-touch controls or a full digital display often have a hidden service mode.

1. Within 5 seconds of turning the dishwasher on, press and hold the HEATED DRY and NORMAL WASH buttons (or sometimes HEATED DRY and START/RESUME).
2. Hold for about 3-5 seconds until the display shows “00” or a service code.
3. You may need to use the START button to cycle through stored fault codes.
4. To exit: Press POWER OFF or let it time out.

Pro Tip: If you try a sequence and nothing happens, your model likely uses a different one. Don’t get frustrated. Go back to Step 1, find your model number, and search online. The KitchenAid website’s support section or sites like AppliancePartsPros are excellent resources for finding official service sheets.

Step 3: Interpreting the Error Codes

Once you’re in diagnostic mode, the real information appears. This could be a blinking light pattern, a series of numbers (F1, F2, etc.), or letters. Here’s a general guide to common KitchenAid dishwasher error codes. Remember, the exact meaning can vary slightly by model series, so your manual is the final authority.

Common Fault Code Meanings

• F1 / E1: Thermistor (Temperature Sensor) Fault. The sensor that monitors water temperature has failed or given an out-of-range reading. This affects drying and sanitize cycles.
• F2 / E2: Drain Error. The dishwasher did not detect that water drained properly within the allotted time. Check for clogs in the drain hose, air gap, garbage disposal connection, or filter. Also, a faulty drain pump or pump impeller.
• F3 / E3: Temperature Error. Water failed to reach the required temperature during the wash or rinse. Could be a failed heating element, a broken thermostat, or a wiring issue.
• F4 / E4: Fill Error. The dishwasher did not fill with water within the time limit. Check water supply valve, inlet valve screen for debris, or a faulty float switch/assembly.
• F5 / E5: Float Switch Error / Overflow. The float switch (a safety device for overfilling) has been activated or is stuck. Often caused by too much suds (from using hand soap) or a leak. Check for water in the base pan.
• F6 / E6: NTC (Thermistor) Error. Similar to F1, a specific thermistor circuit failure.
• F7 / E7: Flow Meter Error. The device that measures water flow into the dishwasher has failed or its reading is invalid.
• F8 / E8: Diverter Error. The diverter motor (which directs water to the wash arms) has failed or is not moving correctly.
• F9 / E9: Wash Arm Encoder Error. The sensor that monitors the rotation of the wash arm has failed.
• F10 / E10: Communication Error. The main control board is having trouble communicating with another module (like a display board). Often a control board issue.
• F11 / E11: Motor/Circulation Error. The circulation pump motor has failed or is jammed. You might hear a hum but no water spray.
• F12 / E12: Heater Relay Error. The relay on the control board that powers the heating element has failed.
• Blinking Lights: Some models use a pattern of blinking lights on the cycle indicators instead of a letter/number code. A service manual will decode these patterns (e.g., “3 blinks, pause, 2 blinks” = F3).

How to Read Multiple Codes

Your dishwasher may store more than one fault code. In diagnostic mode, it will typically show one code at a time. To see if another code is stored, you often press the START/RESUME button or another designated button (check your manual) to cycle through all logged faults. This is crucial—a drain error (F2) might be the primary issue, but a subsequent fill error (F4) could be the root cause if the drain pump failure caused a flood sensor to trip.

Step 4: From Code to Fix – Common Issues and Troubleshooting Paths

Knowing the code is step one. Step two is the logical troubleshooting. Let’s map some common codes to their most likely, user-accessible causes and fixes.

Diagnosing F2 (Drain Error)

This is one of the most common codes. The dishwasher thinks water is still in the tub after the drain cycle.

• Check the Filter: Remove the lower rack. Locate the cylindrical filter assembly at the bottom rear of the tub. Twist and lift it out. Clean it thoroughly under running water. A clogged filter is the #1 cause of drain errors.
• Inspect the Drain Hose: Check the entire length of the drain hose (from the dishwasher to the air gap or disposal inlet) for kinks, clogs, or high loops that prevent proper drainage.
• Check the Air Gap: If you have an air gap device on your counter, remove the cap and clean out any debris inside.
• Garbage Disposal Plug: If your dishwasher drains into a garbage disposal, ensure the knockout plug inside the disposal inlet has been removed (a common oversight after disposal installation).
• Test the Drain Pump: If the above are clear, the drain pump or its impeller may be jammed or failed. Listen during a drain cycle—do you hear a hum but no water movement? This often indicates a jammed pump. Accessing and clearing debris from the pump housing (usually under the filter) is a common DIY fix.

Diagnosing F4 (Fill Error)

The dishwasher didn’t get enough water.

• Check Water Supply: Ensure the water valve under your sink is fully open.
• Inspect Inlet Valve: The solenoid valve that lets water in can get clogged with sediment. Turn off water supply, disconnect the hose from the valve, and check the screen inside the valve inlet for debris.
• Float Switch: The float (a plastic dome in the base pan) may be stuck in the “up” position due to debris or a leak, telling the dishwasher it’s already full. Clean the float and its stem. Check for water in the base pan—if there’s water, you have a leak that must be fixed first.
• Pressure Switch/Hose: Some models use a pressure switch. Check the small rubber hose connected to it for cracks or clogs.

Diagnosing F3 (Temperature Error)

• Heating Element: Visually inspect the exposed element (at the tub bottom) for breaks or heavy mineral buildup. A multimeter test for continuity is the definitive check.
• Thermostat/Thermistor: Often located near the heating element or in the tub. Test for resistance according to specs in a service manual.
• Poor Water Pressure: Low water pressure from your home can prevent proper heating and washing. Check other fixtures.
• Detergent: Using the wrong type (e.g., hand soap) or insufficient detergent can cause poor cleaning and temperature sensing issues.

Step 5: Resetting and Clearing Fault Codes

Sometimes, a fault is a one-time glitch. After fixing the underlying issue (e.g., cleaning the filter after an F2 code), you need to clear the stored error from the control board’s memory.

The Standard Reset Procedure

This is a universal first step for many electronic issues.

1. Turn Off Power: The most reliable method is to turn off the dedicated circuit breaker for the dishwasher at your home’s electrical panel. Leave it off for at least 5 minutes. This fully drains residual power from the control board.
2. Restore Power: Flip the breaker back on.
3. Test: Run a short cycle (like Rinse Only) to see if the error returns or if the dishwasher operates normally.

Alternative “Soft” Reset: Some models allow a reset without cutting power. This is often done by pressing and holding the HEATED DRY button for 3-5 seconds, or pressing a specific sequence like HI TEMP WASH -> HEATED DRY -> START. Consult your manual.

When a Reset Isn’t Enough

If the error code immediately returns after a power reset, the fault is active and persistent. This means the component the code points to is still failed. For example, if you clear an F2, clean the filter, reset the power, and F2 comes back during the next drain cycle, the drain pump is likely faulty and needs replacement. The diagnostic code has done its job—it confirmed the component needs service.

Step 6: Routine Maintenance to Prevent Faults

An ounce of prevention is worth a pound of cure. Regular maintenance can prevent the most common fault codes from ever appearing.

The Monthly/Quarterly Checklist

• Clean the Filter: Do this every 1-2 months. It’s the single most important maintenance task. Remove, disassemble (if possible), and scrub all parts under hot water.
• Check Spray Arms: Remove the lower and upper spray arms. Check the holes for clogs (use a toothpick or paperclip). Ensure they spin freely.
• Wipe the Door Gasket: Use a damp cloth to clean the rubber seal around the door. Wipe it dry. A compromised gasket causes leaks and can trigger overflow sensors.
• Run a Cleaning Cycle: Once a month, run a hot, empty cycle with a cup of white vinegar on the bottom rack or use a commercial dishwasher cleaner like Affresh to remove mineral deposits and grease from the interior, pump, and spray arms.
• Inspect the Drain Hose: Visually check for kinks or deterioration. Ensure it has a proper high loop under the sink to prevent backflow.

Seasonal/Annual Tasks

• Check Inlet Valve Screen: Turn off water supply, disconnect the inlet hose from the valve, and gently clean the fine mesh screen inside the valve inlet.
• Examine the Float Switch: Locate the float (usually a plastic cylinder or dome in the base pan under the lower rack). Move it up and down—it should move freely. Clean any debris from its path.
• Deep Clean the Filter Housing: After removing the main filter, you’ll see a sump area. Use a wet/dry vacuum to suck out any debris, grit, or broken glass that has settled there.

Conclusion: You’ve Got This

Running a diagnostic on your KitchenAid dishwasher is not a mysterious, technician-only ritual. It’s a straightforward communication tool built into your appliance. By following this guide—starting with identifying your model number, using the correct button sequence, and learning to read the resulting error codes—you’ve demystified your dishwasher’s distress signals. You can now diagnose a drain error, a fill issue, or a temperature fault with confidence. Remember, the goal is knowledge. That knowledge lets you make smart decisions: attempt a simple fix like cleaning a filter, order a specific replacement part like a drain pump, or know exactly what to tell a repair technician, potentially saving you from being overcharged. Start with the basics: find that model number, run the diagnostic, and see what your dishwasher has to say. You might just solve the problem yourself.

Frequently Asked Questions

What if I run the diagnostic sequence and nothing happens?

First, double-check that you used the correct sequence for your specific model number. The sequence varies. If you’re sure it’s correct, ensure the dishwasher has power (the breaker is on) and the door is properly closed/latched. Some models require the door to be open during the sequence. If still nothing, consult your manual or search online for your exact model’s procedure.

Are error codes the same for all KitchenAid dishwashers?

No. While many codes (like F1 for thermistor, F2 for drain) are consistent across many models, some codes have different meanings depending on the control board and model series. The definitive source is the technical sheet inside your user manual or a service manual specific to your model number.

How often should I run a diagnostic on my dishwasher?

You don’t need to run diagnostics routinely. Only run them when you notice a problem (strange noises, poor cleaning, error lights, beeping) or if the dishwasher has been idle for a long time. Use them as a troubleshooting tool, not a maintenance task.

Can running a diagnostic damage my dishwasher?

No. The diagnostic mode is a built-in, manufacturer-designed feature. It simply runs the dishwasher’s components through automated tests and reads sensor data. It’s completely safe to use. The only risk is if you attempt to disassemble the appliance without proper knowledge and safety precautions.

My dishwasher shows an error code, I fix the obvious issue, but the code comes back after a reset. What now?

This means the fault is still active. The component the code points to has failed and needs to be replaced. For example, if an F2 (drain) returns after cleaning the filter, the drain pump motor or its assembly is likely faulty and requires replacement. At this point, you can order the part and replace it yourself if you’re handy, or call a technician.

What’s the difference between a diagnostic code and the normal cycle lights?

Normal cycle lights (like “Heavy” or “Normal” being lit) simply indicate the selected wash cycle. Diagnostic codes are entered via a special sequence and are used for troubleshooting. They often appear as numbers (F1, F2), letters (E1, E2), or specific blinking patterns on lights that are not normally used during regular operation. The diagnostic mode will usually cause all cycle lights to illuminate or display a special code like “88” upon entry.
